# Trigger Nodes in Workflows
Trigger nodes define the event that initiates a workflow run. Each workflow must have at least one trigger, which connects directly to the **Start node**. Depending on the workflow type (payment, automation, etc.), different trigger types are available.
***
### Types of Trigger Nodes
#### 1. **Internal Event Trigger**

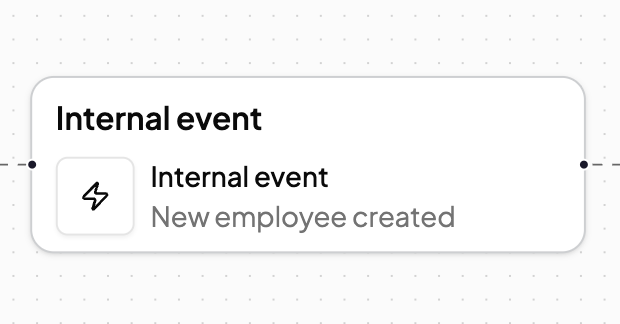

Internal event triggers are based on system activity within XYB services. These are predefined events that originate from core services like Tasks, Ledger, Entity Management, and more.

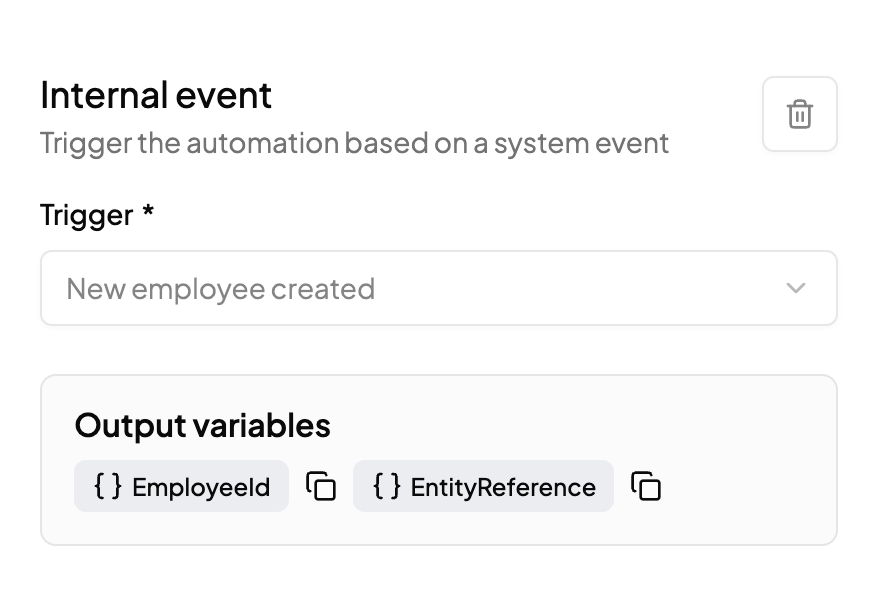

Once you select an internal event, you’ll see the trigger options in the configuration panel on the right. Each event exposes **output variables,** such as `EmployeeId` or `EntityReference` which can be used in downstream nodes like tasks, conditions, or Slack messages. These variables are automatically populated when the event fires, allowing you to build dynamic and data-driven logic across your workflow
***
#### 2. **Webhook Trigger**
The **Webhook** node lets you trigger a workflow from an external system by sending a POST request to a unique, auto-generated URL. This node is ideal for integrating third-party systems or custom apps into your automation flows.
#### How It Works
* When you add a Webhook node to your workflow, a Webhook URL is automatically generated.
* This URL is specific to that workflow version, and cannot be edited.
* You can copy and share this URL with any external system that should trigger the automation.
* The workflow starts every time a valid POST request is made to this endpoint with the correct authentication and payload format.\
#### What You Need To Do
1. **Add a Webhook node** in your workflow (after the Start node).
2. A **Webhook URL** will appear automatically.
3. Paste a **sample JSON payload** in the `Sample payload` section.
* This helps extract and configure **output variables** automatically.
* These variables can then be used in downstream nodes (e.g., Slack, Task, Code, etc.)
***
### Connecting Trigger Nodes
* **Placement**: Always connect directly to the **Start node**.
* **Next Steps**: From the trigger node, add action or task nodes to define what should happen once the event fires.
***
---
